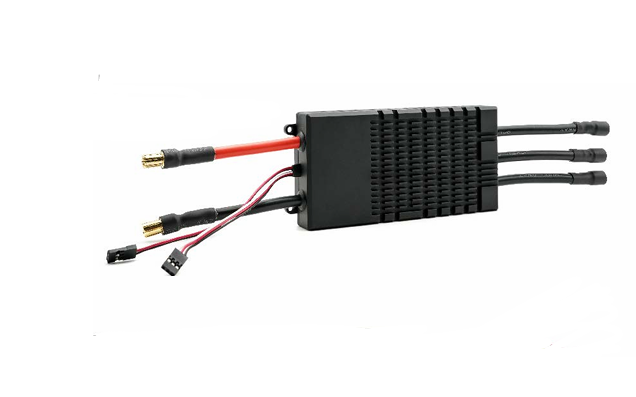

Maven 24S 150A ESC – Up to 100V, 150A Peak, Rainproof
Optimized for Zero-G 120-90 and 120-100 motors, this advanced high-voltage ESC offers up to 100V input and can handle 150A peak / 120A continuous current. Designed for high-power drones, it includes regenerative braking, over-RPM protection, and smart duty cycle control.
Key Specs:
Dimensions: 140.5 × 66.6 × 18 mm
Input Voltage: 50V – 100V (12S – 24S Li-Po)
Peak Current: 150A
Continuous Current: 120A
Weight: 450g
Throttle Signal: 900us – 2000us
Advance Angle: 15°
Safety: Protection from over-voltage/current, high RPM, braking stress
IP Rating: Rainproof
Compatible Motors: Zero-G 120-90, 120-100
